Glazed Tile Roll Forming Machine

Glazed tile roll forming machine

The steel panel produced by glazed tile Roll Forming Machine is beautiful and durable. They are widely used as metal roof panels in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.We have 16 years experience in this field, have provided our customers from different countries with various kinds of roll forming machines to meet the different needs in different markets. customer show us their profile drawing, or specific data of the profile they want to produce, and we provide the exact machine they need.

Specifications:

Thickness of material: 0.3-0.8mm

Main structure:300H steel

Feeding width: 1000mm

Effective width: 828/840mm

Wall plate: 16mm

Diameter of shaft: Ф70 solid

Chain: 1 inch

Electric motor power: 4KW

Reducer: 4# cycloid reducer

Roller: 11rows

Forming speed: 8-12m/min

Material of Rollers: Carbon Structural Steel Hard chromium Plating on the surface

Cutting type: Hydraulic shearing

Motor: 380V, 50HZ/3 phase

Electrical part:CHINT,Delixi

Hydraulic motor: 4KW

Tail cutting material: Delta PLC-14ES

Delivery: 30 days after receipt of advance payment

Package: Plastic packing and nude in the container

Payment Term: T/T, L/C, Trade assurance

Warranty: Warranty: 12 months limited warranty

Images:

Produce process flow

Components

1. Cutting Mechanism

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products. Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine. Stop to cut , Post cut

2. Roll-forming M/C: Roller Mareial: 45# steel

3. Hydraulic systerm

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

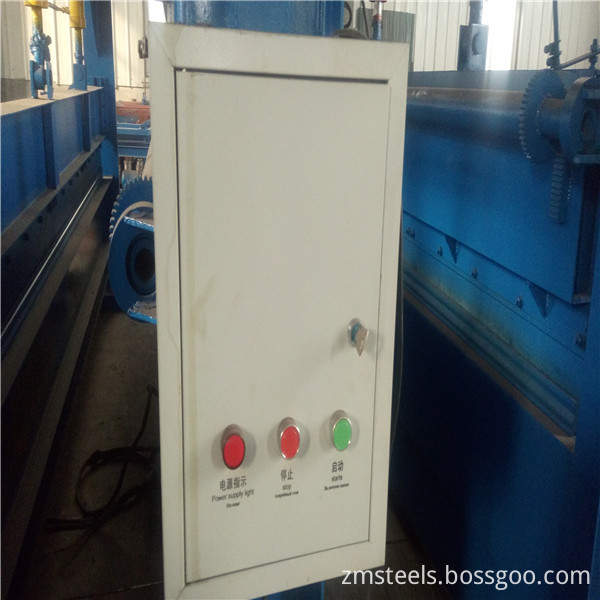

4.Computer control cabinet

It adopts Taida PLC to control(can make as your requirement). The target piece length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one.

5. Manual un-coiler

6. Recieving table

Main framework adopts welded steel and supported roller, and used for transmit and collect the finished products.

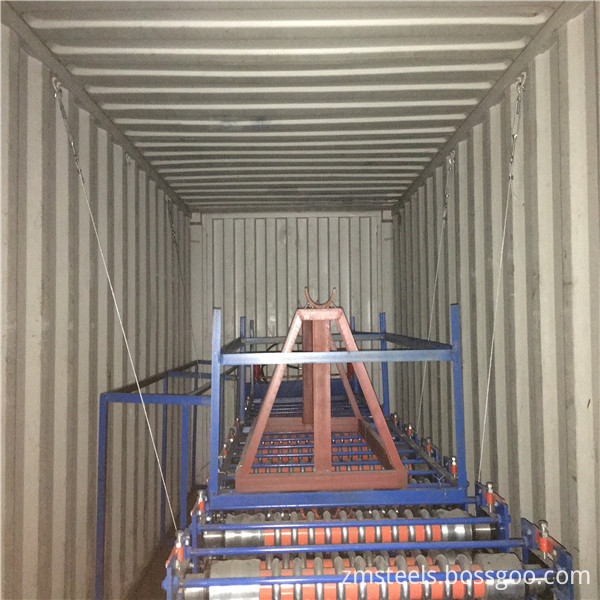

Packing&shippment

Contact

Any interest, please feel free to contact with us.

Contact us if you need more details on Metal Deck Roll Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Glazed Roll Forming Machine、Metal Roof Panel Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Roll Forming Machine > Single Layer Roof Roll Forming Machine
