Home > Products > Roof & wall roll forming machine > Rolling Machine Packing Roof Sheet machine Tool

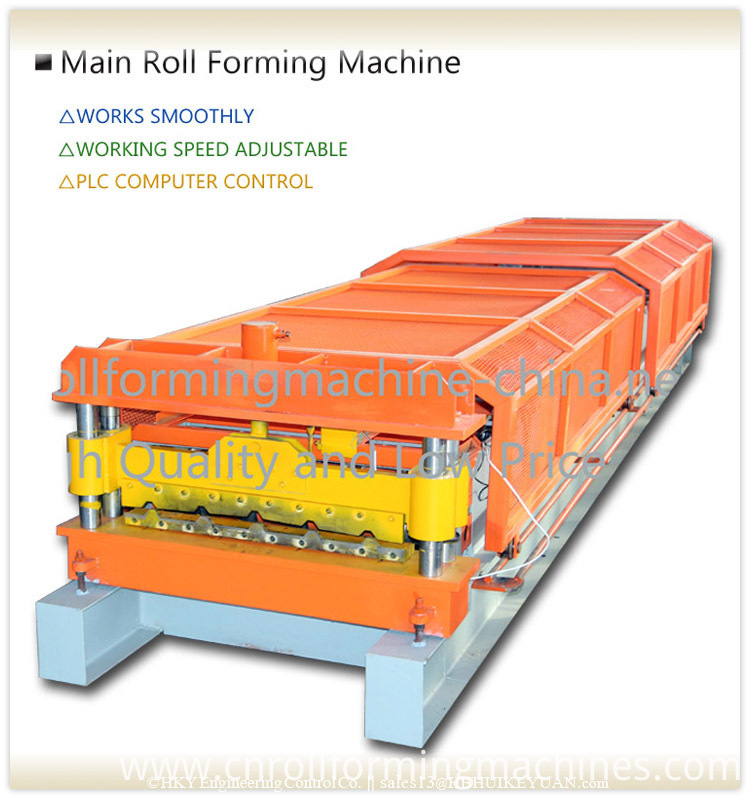

Rolling Machine Packing Roof Sheet machine Tool

Productivity:
25 Sets/Year
Place of Origin:
China
Supply Ability:
25 Sets/Year

Basic Info

Model No.:  rolling machine

Product Description

Model NO.: rolling machine Voltage: 380V Customized Forming Method: Cold Roll Forming Trademark: HKYRFM Specification: 7.5*1.6*1.4M HS Code: 8474801000 Series: Roof Rolling Machine Thickness Range: 0.2-1.2mm Electronic: PLC Transport Package: Seaworthy Packing Origin: China About us
BOTOU HUIKEYUAN ENGINEERING CONTROL CO, . LTD
  is the "Important individually-run enterprise"of Botou City. For 20 years we have devoted ourselves to manufacture of metal-plate cold forming machines and now we have achieved unique management pattern and product development abilityRolling Machine Packing Roof Sheet machine Tool  Our advantage
   [] Excellent reputation for sound and innovatitive engineering
        The use of CAD CAM technology ensures the highest standard of forming precision
   [] Experienced technicians team
       Good at installing and debugging and ensure the machine run durably and smoothly
   [] Experience in exporting to oversea countries
       Engineers available to service machinery overseas
   [] 2 years warranty - double than general
       The warranty is effective for the whole production line with free replacements.
Rolling Machine Packing Roof Sheet machine Tool
Technical Parameters

      1. Main Motor Power: 5.5KW
      2. Hydraulic Station Power: 4KW
      3. Hydraulic Oil Pump: CB-E210

      4. Sprocket: P-25.4
      5. Roller Station: 14
      6. Yield Strength: 12-32MPa

      7. Diameter of main shaft: 95mm
      8. Material of Roller: 45#steel hard chrome plating
      9. Material of Blade: Cr12mov

      10. Processing Speed: 8-12 mtrs/min
      11. Thickness: 0.2-2mm
      12. Installation Dimension (L*W*H): 7.5m*1.5m*1.4m
      13. Total Weight: 5.5T

Rolling Machine Packing Roof Sheet machine Tool

TERMS
1. Delivery: 30 days
2. Package: Seaworthy Packing
3. Payment: L/C, T/T
4. Validity: Please send an online enquiry for latest price


REMARKS
1. The machine is designed acc. to your requirement
2. Within 2-year warranty if it goes broken new part will be sent freely as replacement



SERVICE
2 years warranty. after warranty, we repair the machine and customer pay for the labour and parts when the machine have a problem


EXPORT MARKET
Russia, the UK, India, Australia, the US, Kazakhstan, Tajikistan, Malaysia, Nigeria,
Rumania and Albania etc..



Contact us if you need more details on Rolling Machine. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Roof Machine、Machine Roofing. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Roof & wall roll forming machine
