Water Wave Corrugating Sheet Rolling Machine

Basic Info

Model No.:  corrugating machine

Product Description

Model NO.: corrugating machine Capacity: 8-20m/Min Thickness: 0.1-1.2mm Specification: 5.5m*1.5m*1.4m HS Code: 8455221000 Forming Method: Cold Roll Forming Type: Corrugate Trademark: HKY Origin: China
About us
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

BOTOU HUIKEYUAN ENGINEERING CONTROL CO, . LTD
For 20 years we have devoted ourselves to manufacture of metal-plate cold forming machines and now we have achieved unique management pattern and product development ability..

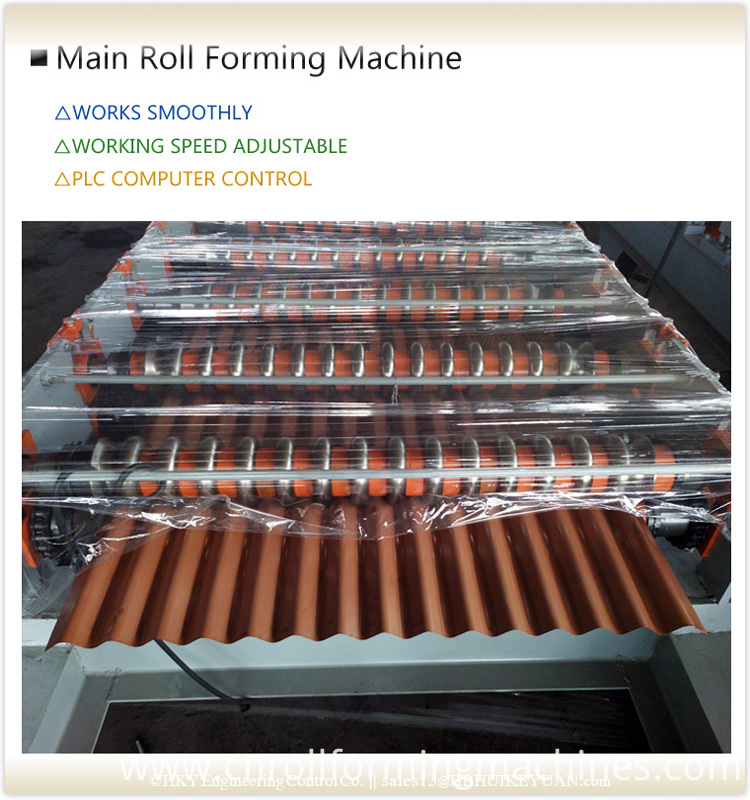

Water Wave Corrugating Sheet Rolling Machine



Our advantage
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

   [] Excellent reputation for sound and innovatitive engineering
       the use of CAD CAM technology ensures the highest standard of forming precision

   [] Experienced technicians team
       good at installing and debugging and ensure the machine run durably and smoothly

   [] Experience in exporting to oversea countries
       engineers available to service machinery overseas

   [] 24 months warranty
       the warranty is effective for the whole production line with free replacements

Water Wave Corrugating Sheet Rolling Machine

Technical Parameters
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

      1. Main Motor Power: 5.5KW
      2. Hydraulic Station Power: 4KW
      3. Hydraulic Oil Pump: CB-E310

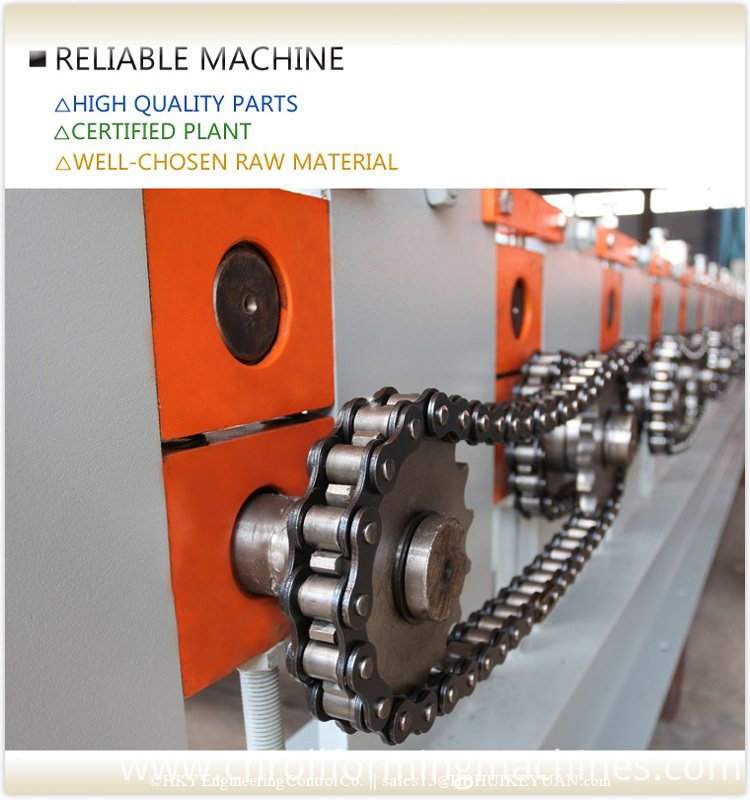

      4. Sprocket: P-25.4
      5. Roller Station: 14
      6. Yield Strength: 12-32MPa

      7. Diameter of main shaft: 95mm
      8. Material of Roller: 45#steel hard chrome plating
      9. Material of Blade: Cr12mov

      10. Capacity: 20mtrs/min
      11. Thickness: 0.1-2.0mm
      12. Panel width: 600-1250mm
      13. Installation Dimension (L*W*H): 7.5m*1.5m*1.4m
      14. Total Weight: 5.5T

Water Wave Corrugating Sheet Rolling Machine


Terms&conditioins
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

      1. Delivery: 30 days
      2. Package: Seaworthy Packing
      3. Payment: L/C, T/T
      4. Validity: Please send an online enquiry for latest price



Remarks
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

      1. The machine is designed acc. to your requirement
      2. Within 2-year warranty if it goes broken new part will be sent freely as                         replacement



Manufacturing systems
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Roof&Wall panel machine Glazed tile machine Sandwich panel machine
Double-layer roof machine C Z purlin machine Steel stud&track machine
K-span Rolling Machine Shutter door making machine Road guardrail machine
Crest tile making machine Floor decking machine Sheet Bending machine
Shearing&slitting machine Arched machine Carriage board machine
Downspout machine Punching machine De-coiler



Main markets
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Asia UK India Australia US Kazakhstan
Tajikistan Malaysia Nigeria Rumania Albania



Best regards,
Mr.Jenrry Zhao
+86-1510-3275782

Contact us if you need more details on Corrugating Machine. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Corrugate Rolling Machine、Sheet Rolling Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
