Model No.: roof machine
BOTOU HUIKEYUAN ENGINEERING CONTROL CO, . LTD
is the "Important individually-run enterprise"of Botou City. For 20 years we have devoted ourselves to manufacture of metal-plate cold forming machines and now we have achieved unique management pattern and product development ability Our advantage
 Excellent reputation for sound and innovatitive engineering
The use of CAD CAM technology ensures the highest standard of forming precision
 Experienced technicians team
Good at installing and debugging and ensure the machine run durably and smoothly
 Experience in exporting to oversea countries
Engineers available to service machinery overseas
 2 years warranty - double than general
The warranty is effective for the whole production line with free replacements.
1. Main Motor Power: 5.5KW
2. Hydraulic Station Power: 4KW
3. Hydraulic Oil Pump: CB-E210
4. Sprocket: P-25.4

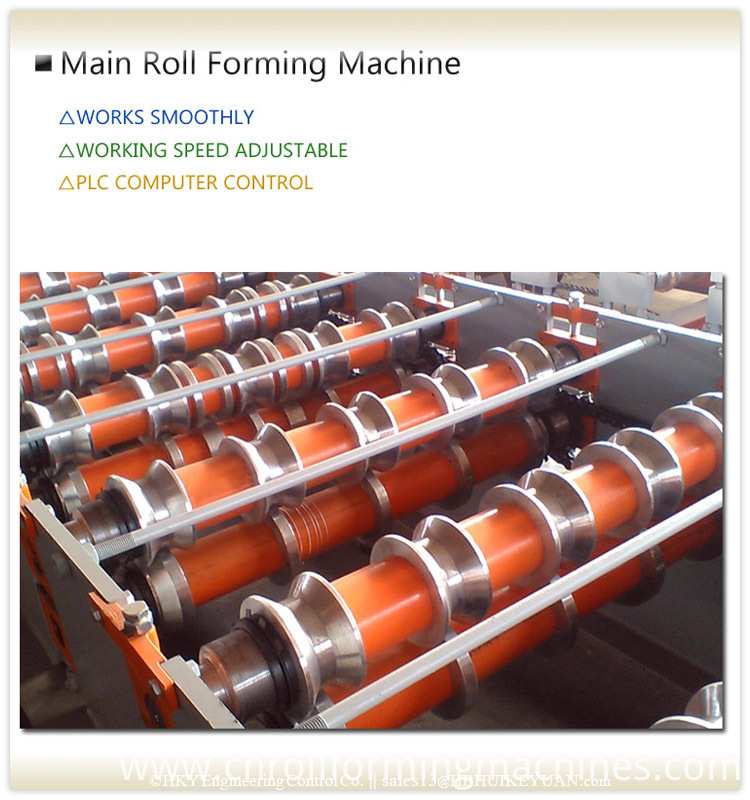

5. Roller Station: 14
6. Yield Strength: 12-32MPa
7. Diameter of main shaft: 95mm
8. Material of Roller: 45#steel hard chrome plating
9. Material of Blade: Cr12mov
10. Processing Speed: 8-12 mtrs/min
11. Thickness: 0.2-2mm
12. Installation Dimension (L*W*H): 7.5m*1.5m*1.4m
13. Total Weight: 5.5T
1. Delivery: 30 days
2. Package: Seaworthy Packing
3. Payment: L/C, T/T
4. Validity: Please send an online enquiry for latest price
1. The machine is designed acc. to your requirement
2. Within 2-year warranty if it goes broken new part will be sent freely as replacement
2 years warranty. after warranty, we repair the machine and customer pay for the labour and parts when the machine have a problem
Russia, the UK, India, Australia, the US, Kazakhstan, Tajikistan, Malaysia, Nigeria,
Rumania and Albania etc..
